Teal workshop preparation

Topics related to data and filter

This is my notes on preparing the teal workshop. All the data used are simulated and public.

Topics

• init()
• data (teal_data object)
• filter (teal_slices object)
• UI modification

Data used in the workshop are:

• IRIS
• tmc_ex_adsl, tmc_ex_adae (included in the teal.modules.clinical package)

Get started

Load necessary libraries.

suppressPackageStartupMessages({
    library(teal)
    library(teal.modules.general)
    library(teal.modules.clinical)
})

Working with data

Outline

• What is teal_data
• Ways to add data
  • directly adding data object
  • add data with within() (pipe needs to be introduced)
    • code inside
    • source from another script
• Interact with teal_data object
  • extract object ([[]], $)
  • examine column names
• Reproducibility
• join_keys()

General usage

What is teal_data?

empty_teal_data <- teal_data()
class(empty_teal_data)

[1] "teal_data"
attr(,"package")
[1] "teal.data"

General usage

path <- 'data/cdisc/'
ADSL <- read.csv(file.path(path, 'adsl.csv'))
# create teal_data object
data <- teal_data(
  ADSL = ADSL
)
# return data object
data

✖ code unverified
<environment: 0x12a1fc820> 🔒
Parent: <environment: package:teal.modules.clinical>
Bindings:
- ADSL: [data.frame]

Add another dataset, for example, ADAE

ADAE <- read.csv(file.path(path, 'adae.csv'))
# update teal_data object
data <- teal_data(
  ADSL = ADSL,
  ADAE = ADAE
)
data

✖ code unverified
<environment: 0x129d5acb8> 🔒
Parent: <environment: package:teal.modules.clinical>
Bindings:
- ADAE: [data.frame]
- ADSL: [data.frame]

Interacting with the object

names(data)

[1] "ADAE" "ADSL"

Extract one dataset, can use either [[]] or $

data$ADSL[1:6,1:6] # only print the first 6 rows and 6 columns

  STUDYID COUNTRY SITEID SUBJID      AGE SEX
1 AB12345     CHN  CHN-1   id-1 36.94418   M
2 AB12345     CHN CHN-11   id-2 39.82057   F
3 AB12345     USA  USA-2   id-3 35.39604   F
4 AB12345     RUS  RUS-1   id-4 30.54711   F
5 AB12345     CHN CHN-11   id-5 33.16138   M
6 AB12345     RUS  RUS-2   id-6 47.65321   F

data[['ADSL']][1:6,1:6]  # need quotation!

  STUDYID COUNTRY SITEID SUBJID      AGE SEX
1 AB12345     CHN  CHN-1   id-1 36.94418   M
2 AB12345     CHN CHN-11   id-2 39.82057   F
3 AB12345     USA  USA-2   id-3 35.39604   F
4 AB12345     RUS  RUS-1   id-4 30.54711   F
5 AB12345     CHN CHN-11   id-5 33.16138   M
6 AB12345     RUS  RUS-2   id-6 47.65321   F

Explore individual dataset: the approach is similar to an ordinary dataframe. For exmaple, to get the column names, can use this syntax:

names(data[['ADSL']]) # colnames() will also work

 [1] "STUDYID"  "COUNTRY"  "SITEID"   "SUBJID"   "AGE"      "SEX"
 [7] "ARMCD"    "ARM"      "ACTARMCD" "ACTARM"   "RACE"     "TRTSDTM"
[13] "TRTEDTM"  "EOSDY"    "EOSDT"    "STRATA1"  "STRATA2"  "BMRKR1"
[19] "BMRKR2"   "REGION1"  "SAFFL"    "USUBJID"  "EOSSTT"   "EOTSTT"
[25] "DCSREAS"  "DTHDT"

Reproducibility

In teal_data, you can also include code that has produced the object. However, you still need to run the code outside this object!

data <- teal_data(
  ADSL = ADSL,
  ADAE = ADAE,
  code = '
  path <- "data/cdisc"
  ADSL <- read.csv(file.path(path, "adsl.csv"))
  ADAE <- read.csv(file.path(path, "adae.csv"))
  '
)
get_code(data)

[1] "\n  path <- \"data/cdisc\"\n  ADSL <- read.csv(file.path(path, \"adsl.csv\"))\n  ADAE <- read.csv(file.path(path, \"adae.csv\"))\n  "

Join keys for CDISC data

join_keys(data)

An empty join_keys object.

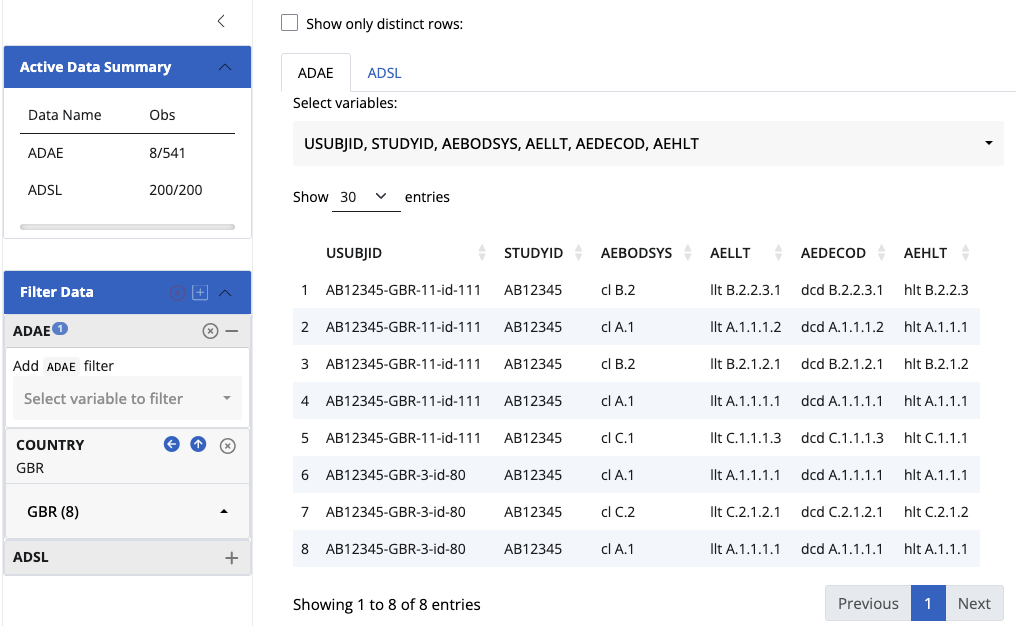

There is no relationship between these two datasets, hence the filtering does not affect one another.

More on join_keys()

Set up primary and foreign keys

default_cdisc_join_keys[c("ADSL", "ADAE")] # Subset for ADSL and ADAE

A join_keys object containing foreign keys between 2 datasets:
ADSL: [STUDYID, USUBJID]
  <-- ADAE: [STUDYID, USUBJID]
ADAE: [STUDYID, USUBJID, ASTDTM, AETERM, AESEQ]
  --> ADSL: [STUDYID, USUBJID]

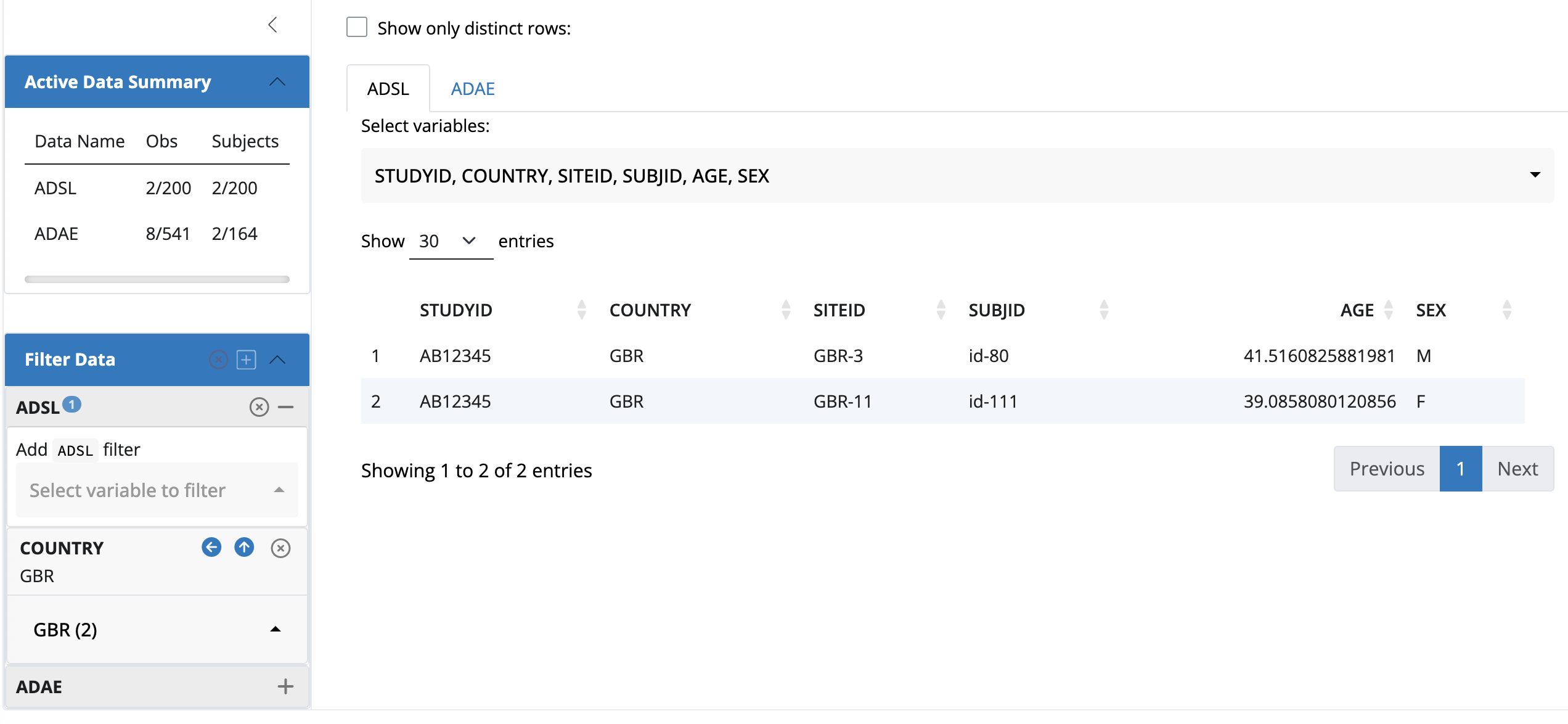

Instead of using teal_data(), cdisc_data() automatcially sets the key.

data <- cdisc_data(
  ADSL = ADSL,
  ADAE = ADAE
)
# check join_keys again
join_keys(data)

A join_keys object containing foreign keys between 2 datasets:
ADSL: [STUDYID, USUBJID]
  <-- ADAE: [STUDYID, USUBJID]
ADAE: [STUDYID, USUBJID, ASTDTM, AETERM, AESEQ]
  --> ADSL: [STUDYID, USUBJID]

Process data: within()

data <- teal_data() |>
  within({
    path <- "data/cdisc"
    ADSL <- read.csv(file.path(path, "adsl.csv"))
    ADAE <- read.csv(file.path(path, "adae.csv"))
  })
data

✅︎ code verified
<environment: 0x13857ba18> 🔒
Parent: <environment: package:teal.modules.clinical>
Bindings:
- ADAE: [data.frame]
- ADSL: [data.frame]
- path: [character]

Note that there are three binding rather than two. You can access the data in the same way ([[]] or $).

data$path

[1] "data/cdisc"

Read from another R script:

Create a separate script (preprocess.R) with the code where you read in the data, then source it.

data <- teal_data() |>
  within(code, code = parse(text = readLines("demo_script/preprocess.R")))
data

✅︎ code verified
<environment: 0x139b4a2e8> 🔒
Parent: <environment: package:teal.modules.clinical>
Bindings:
- ADAE: [data.frame]
- ADSL: [data.frame]
- path: [character]

join_keys() revisited

Distinguish join_key and join_keys!

Assign join_keys() with default cdisc keys

Filters

Topics

• How to set a filter
• Difference between different filters (anchored, fixed, custom expressions)
• Use for id
• Module specific filters

Resources

• Teal documentation: filter panel

Difference between teal_slice and teal_slices: the former is in teal.slices package, while the later is in teal package - as a function to wrap individual ts objects.

By default, init() initializes the fitler panel without any active filters. User can add filter on any column.

To start an app with predefined filters, one must specify the filter argument, wrapped around teal_slices(). Example:

app <- init(
  data = teal_data(IRIS = iris, CARS = mtcars),
  modules = example_module(),
  filter = teal_slices(
    teal_slice(dataname = "IRIS", varname = "Sepal.Length"),
    teal_slice(dataname = "IRIS", varname = "Species", selected = "setosa"),
    teal_slice(dataname = "CARS", varname = "mpg", selected = c(20, Inf)),
    teal_slice(dataname = "CARS", expr = "qsec < 20", title = "1/4 mile under 20 sec", id = "qsec_20")
  )
)

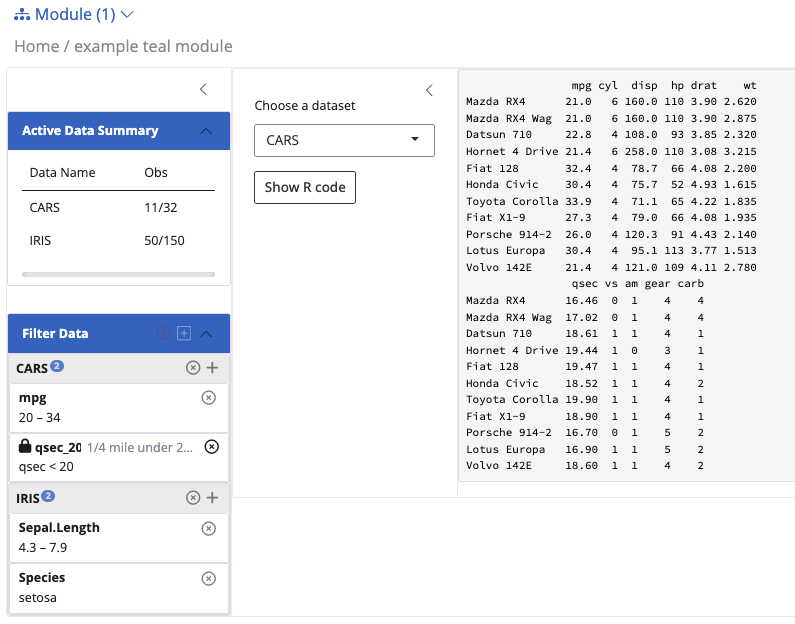

A few things to notice here in the filter panel:

• you can create multiple filters on each dataset. You need to link the filter with the data name inside the teal_data object.
• Required arguments are dataname and varname (if you are not using custom expression).
• For selected argument, if you don’t specify anything, the default will be the entire range. Distinguish between continuous variable and discrete.

Fixed, anchored and custom expressions

f1 <- teal_slice(
  dataname = 'IRIS',
  varname = 'Sepal.Length',
  selected = 'setosa'
)
f1

{
  "dataname" : "IRIS",
  "varname"  : "Sepal.Length",
  "id"       : "IRIS Sepal.Length",
  "selected" : ["setosa"],
  "fixed"    : false,
  "anchored" : false,
  "multiple" : true
}

• Fixed: forbid settings state
• anchored: forbid removing and inactivating

If using custom expressions, must have id. Otherwise id is automatically set to be dataname - varname.

This expression must be a valid R expression which can be evaluated in the dataset.

Module specific filters
